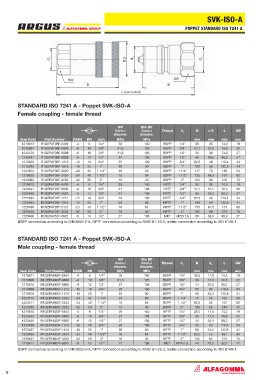

Page 7 - Catálogo Argus - Alfagomma - Engates Rápidos

SVK-ISO-A

POPPET STANDARD ISO 7241 A

d 1 Ø D d 3 d 1

SW SW
B B
L (connected)

STANDARD ISO 7241 A - Poppet SVK-ISO-A
Female coupling - female thread

WP Min BP
Conn./ Conn./ Thread d 1 B ø D L SW
disconn. disconn.
Item Code Part Number DASH DN inch MPa MPa mm mm mm mm
1219613 R1QEPAF06F-0404 -4 6 1/4” 35 140 BSPP 1/4” 50 26 74,2 19
1219607 R1QEPAF06F-0606 -6 10 3/8” 31,5 126 BSPP 3/8” 57,1 31,5 78,5 22
1232129 R1QEPAF06F-0608 -6 10 3/8” 31,5 126 BSPP 1/2” 56 32 74,5 27
1219617 R1QEPAF06F-0808 -8 13 1/2” 27 108 BSPP 1/2” 66 38,5 88,2 27
1219609 R1QEPAF06F-1212 -12 19 3/4” 25 100 BSPP 3/4” 82,5 48 110,4 34
1219619 R1QEPAF06F-1616 -16 25 1” 20 80 BSPP 1” 100 56 132,9 41
1223504 R1QEPAF06F-2020 -20 32 1 1/4” 20 80 BSPP 1 1/4” 117 70 150 50
1219620 R1QEPAF06F-2424 -24 40 1 1/2” 16 64 BSPP 1 1/2” 133 84,5 167 60
1223392 R1QEPAF06F-3232 -32 50 2” 10 40 BSPP 2” 165 99 210 75
1219612 R1QEPAF28F-0404 -4 6 1/4” 35 140 NPTF 1/4” 50 26 74,2 19
1222491 R1QEPAF28F-0606 -6 10 3/8” 27 108 NPTF 3/8” 57,1 31,5 78,5 22
1222488 R1QEPAF28F-0808 -8 13 1/2” 27 108 NPTF 1/2” 66 38,5 88,2 27
1222494 R1QEPAF28F-1212 -12 19 3/4” 25 100 NPTF 3/4” 82,5 48 110,4 34
1222495 R1QEPAF28F-1616 -16 25 1” 20 80 NPTF 1” 100 56 132,9 41
1229489 R1QEPAF28F-2424 -24 40 1 1/2” 16 64 NPTF 1 1/2” 133 84,5 167 60
1229490 R1QEPAF28F-3232 -32 50 2” 10 40 NPTF 2” 165 99 210 75
1229466 R1QEPAF52F-0822 -8 13 1/2” 27 108 MET M22x1,5 66 38,5 88,2 27
BSPP connection according to DIN 3852-2-X, NPTF connection according to ANSI B1-20.3, metric connection according to ISO 6149-1

STANDARD ISO 7241 A - Poppet SVK-ISO-A
Male coupling - female thread

WP Min BP
Conn./ Conn./ Thread d 1 B d 3 L SW
disconn. disconn.
Item Code Part Number DASH DN inch MPa MPa mm mm mm mm
1219611 R1QEPAM06F-0404 -4 6 1/4” 35 140 BSPP 1/4” 38,5 11,8 74,2 19
1219606 R1QEPAM06F-0606 -6 10 3/8” 31,5 126 BSPP 3/8” 39 17,3 78,5 22
1219615 R1QEPAM06F-0808 -8 13 1/2” 27 108 BSPP 1/2” 44 20,5 88,2 27
1219608 R1QEPAM06F-1212 -12 19 3/4” 25 100 BSPP 3/4” 55 29 110,4 34
1219618 R1QEPAM06F-1616 -16 25 1” 20 80 BSPP 1” 66 34,3 132,9 41
1223512 R1QEPAM06F-2020 -20 32 1 1/4” 20 80 BSPP 1 1/4” 75 45 150 50
1223511 R1QEPAM06F-2424 -24 40 1 1/2” 16 64 BSPP 1 1/2” 83,5 55 167 60
1223395 R1QEPAM06F-3232 -32 50 2” 10 40 BSPP 2” 105 65 210 75
1219610 R1QEPAM28F-0404 -4 6 1/4” 35 140 NPTF 1/4” 38,5 11,8 74,2 19
1222492 R1QEPAM28F-0606 -6 10 3/8” 27 108 NPTF 3/8” 39 17,3 78,5 22
1222489 R1QEPAM28F-0808 -8 13 1/2” 27 108 NPTF 1/2” 44 20,5 88,2 27
1222490 R1QEPAM28F-1212 -12 19 3/4” 25 100 NPTF 3/4” 55 29 110,4 34
1222487 R1QEPAM28F-1616 -16 25 1” 20 80 NPTF 1” 66 34,3 132,9 41
1229496 R1QEPAM28F-2424 -24 40 1 1/2” 16 64 NPTF 1 1/2” 83,5 55 167 60
1229497 R1QEPAM28F-3232 -32 50 2” 10 40 NPTF 2” 105 65 210 75
1229477 R1QEPAM52F-0822 -8 13 1/2” 27 108 MET M22x1,5 44 20,5 88,2 27
BSPP connection according to DIN 3852-2-X, NPTF connection according to ANSI B1-20.3, metric connection according to ISO 6149-1
