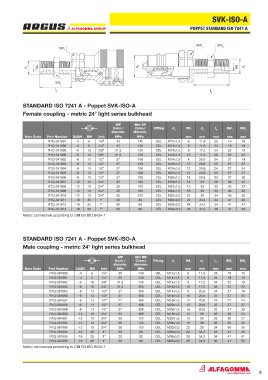

SVK-ISO-A

POPPET STANDARD ISO 7241 A

SW SW
SW 1 1 2

d 1 RA d 3 RA d 1

SW
2
l 8 l
8

STANDARD ISO 7241 A - Poppet SVK-ISO-A
Female coupling - metric 24° light series bulkhead

WP Min BP
Conn./ Conn./ Fitting d 1 RA d 3 l 8 SW 1 SW 2
disconn. disconn.
Item Code Part Number DASH DN inch MPa MPa mm mm mm mm mm
R1Q-341897 -4 6 1/4” 35 140 CEL M12x1,5 6 11,8 25 19 19
R1Q-341898 -4 6 1/4” 35 140 CEL M14x1,5 8 11,8 34 19 19
R1Q-341899 -6 10 3/8” 31,5 126 CEL M14x1,5 8 17,3 34 22 19
R1Q-341900 -6 10 3/8” 31,5 126 CEL M16x1,5 10 17,3 26 22 22
R1Q-341902 -8 13 1/2” 27 108 CEL M14x1,5 8 20,6 34 27 19
R1Q-341903 -8 13 1/2” 27 108 CEL M16x1,5 10 20,6 35 27 22
R1Q-341904 -8 13 1/2” 27 108 CEL M18x1,5 12 20,6 24 27 24
R1Q-341905 -8 13 1/2” 27 108 CEL M22x1,5 15 20,6 33 27 27
R1Q-341906 -8 13 1/2” 27 108 CEL M26x1,5 18 20,6 33 27 30
R1Q-341907 -12 19 3/4” 25 100 CEL M18x1,5 12 29 26 36 24
R1Q-341908 -12 19 3/4” 25 100 CEL M22x1,5 15 29 33 36 27
R1Q-341909 -12 19 3/4” 25 100 CEL M26x1,5 18 29 33 36 30
R1Q-341910 -12 19 3/4” 25 100 CEL M30x2,0 22 29 34 36 36
R1Q-341911 -16 25 1” 20 80 CEL M30x2,0 22 34,3 34 41 36
R1Q-341912 -16 25 1” 20 80 CEL M36x2,0 28 34,3 34 41 41
R1Q-341913 -16 25 1” 20 80 CEL M45x2,0 35 34,3 36 41 55
Metric connection according to DIN EN ISO 8434-1

STANDARD ISO 7241 A - Poppet SVK-ISO-A
Male coupling - metric 24° light series bulkhead

WP Min BP
Conn./ Conn./ Fitting d 1 RA d 1 l 8 SW 1 SW 2
disconn. disconn.
Item Code Part Number DASH DN inch MPa MPa mm mm mm mm mm
R1Q-381880 -4 6 1/4” 35 140 CEL M12x1,5 6 11,8 25 19 19
R1Q-381881 -4 6 1/4” 35 140 CEL M14x1,5 8 11,8 34 19 19
R1Q-381882 -6 10 3/8” 31,5 126 CEL M14x1,5 8 17,3 34 22 19
R1Q-381883 -6 10 3/8” 31,5 126 CEL M16x1,5 10 17,3 26 22 22
R1Q-381885 -8 13 1/2” 27 108 CEL M14x1,5 8 20,6 34 27 19
R1Q-381886 -8 13 1/2” 27 108 CEL M16x1,5 10 20,6 35 27 22
R1Q-381887 -8 13 1/2” 27 108 CEL M18x1,5 12 20,6 24 27 24
R1Q-381888 -8 13 1/2” 27 108 CEL M22x1,5 15 20,6 33 27 27
R1Q-381889 -8 13 1/2” 27 108 CEL M26x1,5 18 20,6 33 27 30
R1Q-381890 -12 19 3/4” 25 100 CEL M18x1,5 12 29 26 36 24
R1Q-381891 -12 19 3/4” 25 100 CEL M22x1,5 15 29 33 36 27
R1Q-381892 -12 19 3/4” 25 100 CEL M26x1,5 18 29 33 36 30
R1Q-381893 -12 19 3/4” 25 100 CEL M30x2,0 22 29 34 36 36
R1Q-381894 -16 25 1” 20 80 CEL M30x2,0 22 34,3 34 41 36
R1Q-381895 -16 25 1” 20 80 CEL M36x2,0 28 34,3 34 41 41
R1Q-381896 -16 25 1” 20 80 CEL M45x2,0 35 34,3 36 41 55
Metric connection according to DIN EN ISO 8434-1
