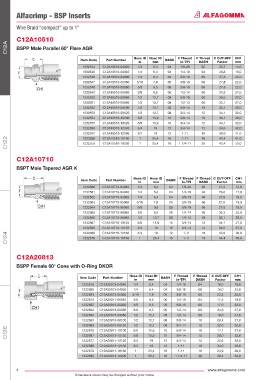

Alfacrimp - BSP Inserts

Wire Braid “compact” up to 1”

C12A10510
C12A BSPP Male Parallel 60° Flare AGR

Hose ID Hose ID F Thread F Thread C CUT-OFF CH1
Item Code Part Number DASH
in mm in-TPI DASH Factor mm
1232544 C12A10510-04020 1/4 6,4 04 1/8-28 02 21,7 14,0
1232545 C12A10510-04040 1/4 6,4 04 1/4-19 04 26,3 19,0
1232546 C12A10510-04060 1/4 6,4 04 3/8-19 06 27,8 22,0
1232547 C12A10510-05060 5/16 7,9 05 3/8-19 06 27,8 22,0
1232548 C12A10510-06060 3/8 9,5 06 3/8-19 06 27,8 22,0
1232549 C12A10510-06080 3/8 9,5 06 1/2-14 08 31,3 27,0
1232550 C12A10510-08060 1/2 12,7 08 3/8-19 06 28,6 22,0
1232551 C12A10510-08080 1/2 12,7 08 1/2-14 08 32,1 27,0
1232552 C12A10510-08100 1/2 12,7 08 5/8-14 10 36,1 30,0
1232553 C12A10510-08120 1/2 12,7 08 3/4-14 12 34,1 32,0
1232554 C12A10510-10100 5/8 15,9 10 5/8-14 10 36,1 30,0
1232555 C12A10510-10120 5/8 15,9 10 3/4-14 12 34,1 32,0
1232556 C12A10510-12120 3/4 19 12 3/4-14 12 34,6 32,0
1232557 C12A10510-12160 3/4 19 12 1-11 16 39,6 41,0
C122 1232558 C12A10510-16160 1 1 25,4 16 1 1/4-11 16 40,4 41,0
1-11
1232559
C12A10510-16200
50,0
16
20
25,4
42,4
C12A10710
BSPT Male Tapered AGR K
Hose ID Hose ID F Thread F Thread C CUT-OFF CH1
Item Code Part Number DASH
in mm in-TPI DASH Factor mm
1232560 C12A10710-04020 1/4 6,4 04 1/8-28 02 21,3 12,0
1232561 C12A10710-04040 1/4 6,4 04 1/4-19 04 26,8 17,0
1232562 C12A10710-04060 1/4 6,4 04 3/8-19 06 27,8 19,0
1232563 C12A10710-05060 5/16 7,9 05 3/8-19 06 27,8 19,0
1232564 C12A10710-06060 3/8 9,5 06 3/8-19 06 27,8 19,0
1232565 C12A10710-06080 3/8 9,5 06 1/2-14 08 32,3 22,0
1232566 C12A10710-08080 1/2 12,7 08 1/2-14 08 33,1 22,0
1232567 C12A10710-10120 5/8 15,9 10 3/4-14 12 34,1 27,0
1232568 C12A10710-12120 3/4 19 12 3/4-14 12 34,6 27,0
19
12
3/4
1232569
C12A10710-12160
16
43,6
1-11
36,0
C124 1232570 C12A10710-16160 1 25,4 16 1-11 16 44,4 36,0
C12A20813
BSPP Female 60° Cone with O-Ring DKOR
Hose ID Hose ID F Thread F Thread C CUT-OFF CH1
Item Code Part Number DASH
in mm in-TPI DASH Factor mm
1232679 C12A20813-04040 1/4 6,4 04 1/4-19 04 16,0 19,0
1232680 C12A20813-04060 1/4 6,4 04 3/8-19 06 16,0 22,0
1232681 C12A20813-05060 5/16 7,9 05 3/8-19 06 23,3 22,0
1232675 C12A20811-06040 3/8 9,5 06 1/4-19 04 17,3 19,0
1232682 C12A20813-06060 3/8 9,5 06 3/8-19 06 17,0 22,0
1232683 C12A20813-06080 3/8 9,5 06 1/2-14 08 24,3 27,0
1232684 C12A20813-08080 1/2 12,7 08 1/2-14 08 18,0 27,0
1232685 C12A20813-08100 1/2 12,7 08 5/8-14 10 28,4 27,0
1232686 C12A20813-08120 1/2 12,7 08 3/4-14 12 22,0 32,0
C126 1232676 C12A20811-10100 5/8 15,9 10 5/8-14 10 17,1 27,0
5/8
20,0
12
32,0
15,9
1232687
C12A20813-10120
3/4-14
10
1232677 C12A20811-12120 3/4 19 12 3/4-14 12 20,6 32,0
1232688 C12A20813-12160 3/4 19 12 1-11 16 34,0 38,0
1232678 C12A20811-16160 1 25,4 16 1-11 16 23,9 38,0
1232689 C12A20813-16200 1 25,4 16 1 1/4-11 20 39,4 50,0
4 www.alfagomma.com
Dimensions shown may be changed without prior notice
