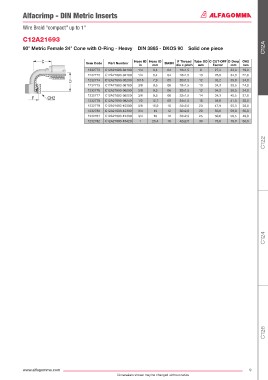

Page 7 - Catálogo Alfacrimp - Alfagomma

Alfacrimp - DIN Metric Inserts

Wire Braid “compact” up to 1”

C12A21693
C12A
90° Metric Female 24° Cone with O-Ring - Heavy DIN 3865 - DKOS 90 Solid one piece

Hose ID Hose ID F Thread Tube OD C CUT-OFF D Drop CH2
Item Code Part Number DASH
in mm dia x pitch mm Factor mm mm
1232772 C12A21693-04160 1/4 6,4 04 16x1,5 8 27,3 33,0 19,0
1232773 C12A21693-04180 1/4 6,4 04 18x1,5 10 26,8 34,0 22,0
1232774 C12A21693-05200 5/16 7,9 05 20x1,5 12 33,2 39,0 24,0
1232775 C12A21693-06180 3/8 9,5 06 18x1,5 10 34,3 38,5 24,0
1232776 C12A21693-06200 3/8 9,5 06 20x1,5 12 34,3 38,5 24,0
1232777 C12A21693-06220 3/8 9,5 06 22x1,5 14 34,3 40,5 27,0
1232778 C12A21693-08240 1/2 12,7 08 24x1,5 16 39,8 41,5 30,0
1232779 C12A21693-10300 5/8 15,9 10 30x2,0 20 47,9 55,0 36,0
1232780 C12A21693-12300 3/4 19 12 30x2,0 20 50,6 58,0 36,0
1232781 C12A21693-12360 3/4 19 12 36x2,0 25 50,6 59,5 46,0
1232782 C12A21693-16420 1 25,4 16 42x2,0 30 75,6 79,0 50,0

C122

C124

C126

www.alfagomma.com 9
Dimensions shown may be changed without notice
