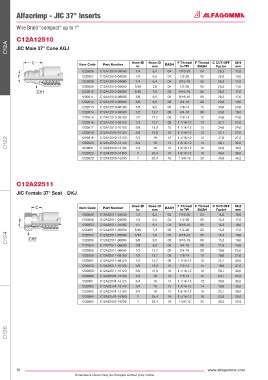

Alfacrimp - JIC 37° Inserts

Wire Braid “compact” up to 1”

C12A12510
C12A JIC Male 37° Cone AGJ

Hose ID Hose ID F Thread F Thread C CUT-OFF CH1
Item Code Part Number DASH
in mm in-TPI DASH Factor mm
1232606 C12A12510-04040 1/4 6,4 04 7/16-20 04 25,3 12,0
1232607 C12A12510-04050 1/4 6,4 04 1/2-20 05 25,3 14,0
1232608 C12A12510-04060 1/4 6,4 04 9/16-18 06 26,3 17,0
1232609 C12A12510-05050 5/16 7,9 05 1/2-20 05 25,3 14,0
1232610 C12A12510-05060 5/16 7,9 05 9/16-18 06 26,3 17,0
1232611 C12A12510-06060 3/8 9,5 06 9/16-18 06 26,3 17,0
1232612 C12A12510-06080 3/8 9,5 06 3/4-16 08 29,8 19,0
1232613 C12A12510-06100 3/8 9,5 06 7/8-14 10 33,8 24,0
1232614 C12A12510-08080 1/2 12,7 08 3/4-16 08 30,6 19,0
1232615 C12A12510-08100 1/2 12,7 08 7/8-14 10 34,6 24,0
1232616 C12A12510-08120 1/2 12,7 08 1 1/16-12 12 37,1 27,0
1232617 C12A12510-10100 5/8 15,9 10 1 1/16-12 10 34,6 24,0
1232618 C12A12510-10120 5/8 15,9 10 1 1/16-12 12 37,1 27,0
1 1/16-12
19
C12A12510-12120
12
37,6
12
3/4
1232619
27,0
C122 1232620 C12A12510-12140 3/4 19 12 1 3/16-12 14 40,1 32,0
1 5/16-12
C12A12510-12160
42,6
16
12
19
1232621
3/4
36,0
1232622 C12A12510-16160 1 25,4 16 1 5/16-12 16 43,4 36,0
1232623 C12A12510-16200 1 25,4 16 1 5/8-12 20 46,9 46,0
C12A22511
JIC Female 37° Seat DKJ
Hose ID Hose ID F Thread F Thread C CUT-OFF CH2
Item Code Part Number DASH
in mm in-TPI DASH Factor mm
1232848 C12A22511-04040 1/4 6,4 04 7/16-20 04 14,6 16,0
1232849 C12A22511-04050 1/4 6,4 04 1/2-20 05 15,3 17,0
1232850 C12A22511-04060 1/4 6,4 04 9/16-18 06 15,3 19,0
1232851 C12A22511-05050 5/16 7,9 05 1/2-20 05 15,3 17,0
C124 1232852 C12A22511-05060 5/16 7,9 05 9/16-18 06 15,3 19,0
9,5
06
9/16-18
06
19,0
C12A22511-06060
1232853
15,3
3/8
1232854 C12A22511-06080 3/8 9,5 06 3/4-16 08 17,8 25,0
1232855 C12A22511-08080 1/2 12,7 08 3/4-16 08 18,6 25,0
1232856 C12A22511-08100 1/2 12,7 08 7/8-14 10 19,6 27,0
1232857 C12A22511-08120 1/2 12,7 08 1 1/16-12 12 22,1 32,0
1232858 C12A22511-10100 5/8 15,9 10 7/8-14 10 19,6 27,0
1232859 C12A22511-10120 5/8 15,9 10 1 1/16-12 12 20,1 32,0
1232860 C12A22511-12100 3/4 19 12 7/8-14 10 20,1 27,0
1232861 C12A22511-12120 3/4 19 12 1 1/16-12 12 20,6 32,0
1232862 C12A22511-12140 3/4 19 12 1 3/16-12 14 19,9 36,0
1232863 C12A22511-12160 3/4 19 12 1 5/16-12 16 22,1 38,0
1232864 C12A22511-16160 1 25,4 16 1 5/16-12 16 23,9 38,0
1232865 C12A22512-16200 1 25,4 16 1 5/8-12 20 26,5 50,0
C126

10 www.alfagomma.com
Dimensions shown may be changed without prior notice
