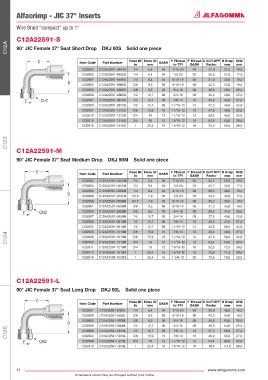

Alfacrimp - JIC 37° Inserts

Wire Braid “compact” up to 1”

C12A22591-S
C12A 90° JIC Female 37° Seat Short Drop DKJ 90S Solid one piece

Hose ID Hose ID F Thread F Thread C CUT-OFF D Drop CH2
Item Code Part Number DASH
in mm in-TPI DASH Factor mm mm
1232883 C12A22591-0404S 1/4 6,4 04 7/16-20 04 27,0 21,0 16,0
1232885 C12A22591-0405S 1/4 6,4 04 1/2-20 05 26,5 23,5 17,0
1232887 C12A22591-0406S 1/4 6,4 04 9/16-18 06 31,0 23,0 19,0
1232892 C12A22591-0606S 3/8 9,5 06 9/16-18 06 42,3 23,0 19,0
1232895 C12A22591-0608S 3/8 9,5 06 3/4-16 08 48,8 29,0 25,0
1232898 C12A22591-0808S 1/2 12,7 08 3/4-16 08 46,4 29,0 25,0
1232901 C12A22591-0810S 1/2 12,7 08 7/8-14 10 45,8 32,0 27,0
1232903 C12A22591-0812S 1/2 12,7 08 1 1/16-12 12 37,3 46,0 32,0
1232907 C12A22591-1012S 5/8 15,9 10 1 1/16-12 12 47,9 48,0 32,0
1232910 C12A22591-1212S 3/4 19 12 1 1/16-12 12 58,2 46,0 32,0
1232912 C12A22591-1216S 3/4 19 12 1 5/16-12 16 53,6 53,0 38,0
1232915 C12A22591-1616S 1 25,4 16 1 5/16-12 16 74,0 56,0 38,0

C122

C12A22591-M
90° JIC Female 37° Seat Medium Drop DKJ 90M Solid one piece

Hose ID Hose ID F Thread F Thread C CUT-OFF D Drop CH2
Item Code Part Number DASH
in mm in-TPI DASH Factor mm mm
1232882 C12A22591-0404M 1/4 6,4 04 7/16-20 04 34,2 32,0 16,0
1232884 C12A22591-0405M 1/4 6,4 04 1/2-20 05 25,7 30,0 17,0
1232886 C12A22591-0406M 1/4 6,4 04 9/16-18 06 28,5 38,0 19,0
1232888 C12A22591-0505M 5/16 7,9 05 1/2-20 05 34,2 32,0 17,0
1232889 C12A22591-0506M 5/16 7,9 05 9/16-18 06 33,2 35,0 19,0
1232891 C12A22591-0606M 3/8 9,5 06 9/16-18 06 31,3 35,0 19,0
1232894 C12A22591-0608M 3/8 9,5 06 3/4-16 08 39,5 41,0 25,0
1232897 C12A22591-0808M 1/2 12,7 08 3/4-16 08 37,2 40,0 25,0
1232900 C12A22591-0810M 1/2 12,7 08 7/8-14 10 43,3 47,0 27,0
1232902 C12A22591-0812M 1/2 12,7 08 1 1/16-12 12 42,8 58,0 32,0
1232905 C12A22591-1010M 5/8 15,9 10 7/8-14 10 49,4 48,0 27,0
C124 1232906 C12A22591-1012M 5/8 15,9 10 1 1/16-12 12 47,9 58,0 32,0
1 1/16-12
C12A22591-1212M
12
19
32,0
52,4
54,0
12
3/4
1232909
1232911 C12A22591-1216M 3/4 19 12 1 5/16-12 16 52,6 72,0 38,0
1232914 C12A22591-1616M 1 25,4 16 1 5/16-12 16 72,6 71,5 38,0
1232916 C12A22592-1620M 1 25,4 16 1 5/8-12 20 72,6 78,0 50,0
C12A22591-L
90° JIC Female 37° Seat Long Drop DKJ 90L Solid one piece

Hose ID Hose ID F Thread F Thread C CUT-OFF D Drop CH2
Item Code Part Number DASH
in mm in-TPI DASH Factor mm mm
1232881 C12A22591-0404L 1/4 6,4 04 7/16-20 04 30,8 46,0 16,0
1232890 C12A22591-0606L 3/8 9,5 06 9/16-18 06 43,3 54,0 19,0
1232893 C12A22591-0608L 3/8 9,5 06 3/4-16 08 46,8 64,0 25,0
1232896 C12A22591-0808L 1/2 12,7 08 3/4-16 08 49,9 64,0 25,0
C126 1232899 C12A22591-0810L 1/2 12,7 08 7/8-14 10 37,3 65,0 27,0
C12A22591-1010L
7/8-14
10
49,9
27,0
5/8
15,9
1232904
65,0
10
1232908 C12A22591-1212L 3/4 19 12 1 1/16-12 12 54,1 95,0 32,0
1232913 C12A22591-1616L 1 25,4 16 1 5/16-12 16 78,6 114,0 38,0
12 www.alfagomma.com
Dimensions shown may be changed without prior notice
