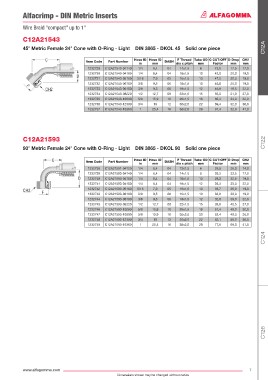

Alfacrimp - DIN Metric Inserts

Wire Braid “compact” up to 1”

C12A21543
C12A
45° Metric Female 24° Cone with O-Ring - Light DIN 3865 - DKOL 45 Solid one piece

Hose ID Hose ID F Thread Tube OD C CUT-OFF D Drop CH2
Item Code Part Number DASH
in mm dia x pitch mm Factor mm mm
1232729 C12A21543-04140 1/4 6,4 04 14x1.5 8 43,0 17,5 17,0
1232730 C12A21543-04160 1/4 6,4 04 16x1,5 10 42,0 20,0 19,0
1232731 C12A21543-05160 5/16 7,9 05 16x1,5 10 47,5 20,0 19,0
1232732 C12A21543-06160 3/8 9,5 06 16x1,5 10 46,8 20,0 19,0
1232733 C12A21543-06180 3/8 9,5 06 18x1,5 12 46,8 19,5 22,0
1232734 C12A21543-08220 1/2 12,7 08 22x1,5 15 55,0 21,0 27,0
1232735 C12A21543-10260 5/8 15,9 10 26x1,5 18 65,3 24,0 32,0
1232736 C12A21543-12300 3/4 19 12 30x2,0 22 69,4 32,0 36,0
1232737 C12A21543-16360 1 25,4 16 36x2,0 28 91,4 32,0 41,0

C12A21593 C122
90° Metric Female 24° Cone with O-Ring - Light DIN 3865 - DKOL 90 Solid one piece

Hose ID Hose ID F Thread Tube OD C CUT-OFF D Drop CH2
Item Code Part Number DASH
in mm dia x pitch mm Factor mm mm
1232738 C12A21591-04120 1/4 6,4 04 12x1,5 6 29,5 26,0 14,0
1232739 C12A21593-04140 1/4 6,4 04 14x1.5 8 28,3 32,5 17,0
1232740 C12A21593-04160 1/4 6,4 04 16x1,5 10 28,3 32,5 19,0
1232741 C12A21593-04180 1/4 6,4 04 18x1,5 12 28,3 35,0 22,0
1232742 C12A21593-05160 5/16 7,9 05 16x1,5 10 33,7 38,0 19,0
1232743 C12A21593-06160 3/8 9,5 06 16x1,5 10 32,8 38,0 19,0
1232744 C12A21593-06180 3/8 9,5 06 18x1,5 12 32,8 39,0 22,0
1232745 C12A21593-08220 1/2 12,7 08 22x1,5 15 39,8 40,5 27,0
1232746 C12A21593-10260 5/8 15,9 10 26x1,5 18 51,4 48,0 32,0
1232747 C12A21593-10300 5/8 15,9 10 30x2,0 30 52,4 49,0 36,0
1232748 C12A21593-12300 3/4 19 12 30x2,0 22 52,1 59,0 36,0
1232749 C12A21593-16360 1 25,4 16 36x2,0 28 77,6 68,0 41,0
C124

C126

www.alfagomma.com 7
Dimensions shown may be changed without notice
