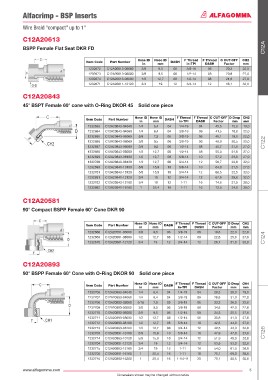

Alfacrimp - BSP Inserts

Wire Braid “compact” up to 1”

C12A20613
C12A
BSPP Female Flat Seat DKR FD

Hose ID Hose ID F Thread F Thread C CUT-OFF CH2
Item Code Part Number DASH
in mm in-TPI DASH Factor mm
1232672 C12A20613-06060 3/8 9,5 06 3/8-19 06 20,3 22,0
1232673 C12A20613-06080 3/8 9,5 06 1/2-14 08 20,8 27,0
1232674 C12A20613-08080 1/2 12,7 08 1/2-14 08 21,6 27,0
1232671 C12A20611-12120 3/4 19 12 3/4-14 12 18,1 32,0

C12A20843
45° BSPT Female 60° cone with O-Ring DKOR 45 Solid one piece

Hose ID Hose ID F Thread F Thread C CUT-OFF D Drop CH2
Item Code Part Number DASH
in mm in-TPI DASH Factor mm mm
1232693 C12A20843-04040 1/4 6,4 04 1/4-19 04 45,5 15,0 19,0
1232694 C12A20843-04060 1/4 6,4 04 3/8-19 06 41,5 18,0 22,0
1232695 C12A20843-05060 5/8 7,9 05 3/8-19 06 45,1 19,0 22,0
1232696 C12A20843-06060 3/8 9,5 06 3/8-19 06 49,9 20,5 22,0 C122
1232697 C12A20843-06080 3/8 9,5 06 1/2-14 08 45,7 21,0 27,0
1232698 C12A20843-08080 1/2 12,7 08 1/2-14 08 55,0 21,0 27,0
1232699 C12A20843-08100 1/2 12,7 08 5/8-14 10 57,2 23,0 27,0
1232700 C12A20843-08120 1/2 12,7 08 3/4-14 12 56,7 23,0 32,0
1232690 C12A20841-10100 5/8 15,9 10 5/8-14 10 64,0 21,5 27,0
1232701 C12A20843-10120 5/8 15,9 10 3/4-14 12 66,5 22,5 32,0
1232691 C12A20841-12120 3/4 19 12 3/4-14 12 67,6 28,0 32,0
1232702 C12A20843-12160 3/4 19 12 1-11 16 74,6 31,5 38,0
1232692 C12A20841-16160 1 25,4 16 1-11 16 72,5 34,0 38,0

C12A20581

90° Compact BSPP Female 60° Cone DKR 90

Hose ID Hose ID F Thread F Thread C CUT-OFF D Drop CH2
Item Code Part Number DASH
in mm in-TPI DASH Factor mm mm
1232668 C12A20581-06060 3/8 9,5 06 3/8-19 06 18,8 22,0 22,0
1232669 C12A20581-08080 1/2 12,7 08 1/2-14 08 22,6 25,0 27,0 C124
1232670 C12A20581-12120 3/4 19 12 3/4-14 12 26,7 31,0 32,0

C12A20893

90° BSPP Female 60° Cone with O-Ring DKOR 90 Solid one piece

Hose ID Hose ID F Thread F Thread C CUT-OFF D Drop CH1
Item Code Part Number DASH
in mm in-TPI DASH Factor mm mm
1232706 C12A20893-04040 1/4 6,4 04 1/4-19 04 29,3 29,0 19,0
1232707 C12A20893-04060 1/4 6,4 04 3/8-19 06 29,8 31,0 22,0
1232708 C12A20893-05060 5/16 7,9 05 3/8-19 06 33,2 36,0 22,0
1232709 C12A20893-06060 3/8 9,5 06 3/8-19 06 34,8 42,0 22,0
1232710 C12A20893-06080 3/8 9,5 06 1/2-14 08 34,3 35,5 27,0
1232711 C12A20893-08080 1/2 12,7 08 1/2-14 08 35,8 41,0 27,0
1232712 C12A20893-08100 1/2 12,7 08 5/8-14 10 42,5 44,0 27,0
1232713 C12A20893-08120 1/2 12,7 08 3/4-14 12 42,5 43,0 32,0
1232703 C12A20891-10100 5/8 15,9 10 5/8-14 10 47,9 47,0 27,0 C126
1232714 C12A20893-10120 5/8 15,9 10 3/4-14 12 51,9 49,0 32,0
1232704 C12A20891-12120 3/4 19 12 3/4-14 12 53,5 53,0 32,0
1232715 C12A20893-12160 3/4 19 12 1-11 16 54,0 61,0 38,0
1232705 C12A20891-16160 1 25,4 16 1-11 16 75,1 69,0 38,0
1232716 C12A20893-16200 1 25,4 16 1 1/4-11 20 75,1 88,5 50,0
