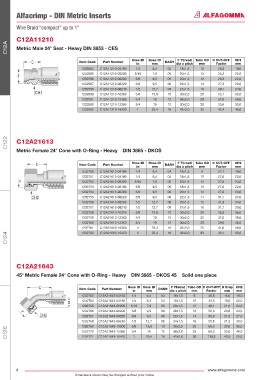

Page 6 - Catálogo Alfacrimp - Alfagomma

Alfacrimp - DIN Metric Inserts

Wire Braid “compact” up to 1”

C12A11210
C12A Metric Male 24° Seat - Heavy DIN 3853 - CES

Hose ID Hose ID F Thread Tube OD C CUT-OFF CH1
Item Code Part Number DASH
in mm dia x pitch mm Factor mm
1232584 C12A11210-04180 1/4 6,4 04 18x1,5 10 25,3 19,0
1232585 C12A11210-05200 5/16 7,9 05 20x1,5 12 25,3 22,0
1232586 C12A11210-06200 3/8 9,5 06 20x1,5 12 25,3 22,0
1232587 C12A11210-06220 3/8 9,5 06 22x1,5 14 27,3 22,0
1232588 C12A11210-08240 1/2 12,7 08 24x1,5 16 29,1 24,0
1232589 C12A11210-10300 5/8 15,9 10 30x2,0 20 33,1 32,0
1232591 C12A11210-12360 3/4 19 12 36x2,0 28 37,6 36,0
1232590 C12A11210-12300 3/4 19 12 30x2,0 30 33,6 32,0
1232592 C12A11210-16420 1 25,4 16 42x2,0 30 42,4 46,0

C122 C12A21613

Metric Female 24° Cone with O-Ring - Heavy DIN 3865 - DKOS

Hose ID Hose ID F Thread Tube OD C CUT-OFF CH2
Item Code Part Number DASH
in mm dia x pitch mm Factor mm
1232750 C12A21613-04160 1/4 6,4 04 16x1,5 8 27,7 19,0
1232751 C12A21613-04180 1/4 6,4 04 18x1,5 10 27,6 22,0
1232752 C12A21613-05200 5/16 7,9 05 20x1,5 12 27,6 24,0
1232753 C12A21613-06180 3/8 9,5 06 18x1,5 10 27,6 22,0
1232754 C12A21613-06200 3/8 9,5 06 20x1,5 12 27,6 24,0
1232755 C12A21613-06220 3/8 9,5 06 22x1,5 14 31,1 27,0
1232756 C12A21613-08200 1/2 12,7 08 20x1,5 12 31,9 24,0
1232757 C12A21613-08240 1/2 12,7 08 24x1,5 16 31,7 30,0
1232758 C12A21613-10300 5/8 15,9 10 30x2,0 20 36,5 36,0
1232759 C12A21613-12300 3/4 19 12 30x2,0 20 37,0 36,0
1232760 C12A21613-12360 3/4 19 12 36x2,0 25 39,6 46,0
1232761 C12A21613-16360 1 1 25,4 16 36x2,0 25 41,0 46,0
42x2,0
C12A21613-16420
25,4
16
43,1
50,0
1232762
30
C124
C12A21643
45° Metric Female 24° Cone with O-Ring - Heavy DIN 3865 - DKOS 45 Solid one piece

Hose ID Hose ID F Thread Tube OD C CUT-OFF D Drop CH2
Item Code Part Number DASH
in mm dia x pitch mm Factor mm mm
1232763 C12A21643-04160 1/4 6,4 04 16x1,5 8 48,6 16,0 19,0
1232764 C12A21643-04180 1/4 6,4 04 18x1,5 10 43,5 19,0 22,0
1232765 C12A21643-05200 5/16 7,9 05 20x1,5 12 48,1 21,0 24,0
1232766 C12A21643-06200 3/8 9,5 06 20x1,5 12 50,6 20,0 24,0
1232767 C12A21643-06220 3/8 9,5 06 22x1,5 14 52,9 21,0 27,0
1232768 C12A21643-08240 1/2 12,7 08 24x1,5 16 55,8 21,5 30,0
1232769 C12A21643-10300 5/8 15,9 10 30x2,0 20 66,3 30,0 36,0
C126 1232770 C12A21643-12360 3/4 25,4 12 36x2,0 25 110,3 33,0 46,0
69,5
19
C12A21643-16420
50,0
40,5
1232771
42x2,0
16
30
1
8 www.alfagomma.com
Dimensions shown may be changed without prior notice
