P. 11

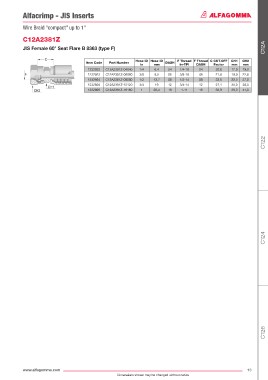

Alfacrimp - JIS Inserts
Wire Braid “compact” up to 1”
C12A2381Z
C12A
JIS Female 60° Seat Flare B 8363 (type F)
Hose ID Hose ID F Thread F Thread C CUT-OFF CH1 CH2
Item Code Part Number DASH
in mm in-TPI DASH Factor mm mm
1232922 C12A2381Z-04040 1/4 6,4 04 1/4-19 04 20,8 17,0 19,0
1232923 C12A2381Z-06060 3/8 9,5 06 3/8-19 06 21,8 19,0 22,0
1232924 C12A2381Z-08080 1/2 12,7 08 1/2-14 08 23,6 22,0 27,0
1232925 C12A2381Z-12120 3/4 19 12 3/4-14 12 27,1 30,0 36,0
1232926 C12A2381Z-16160 1 25,4 16 1-11 16 32,9 36,0 41,0
C122
C124
C126
www.alfagomma.com 13
Dimensions shown may be changed without notice
