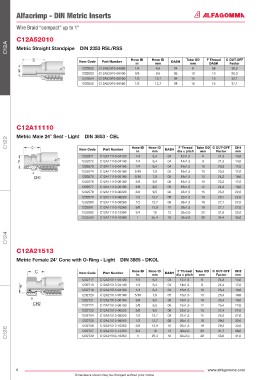

Page 4 - Catálogo Alfacrimp - Alfagomma

Alfacrimp - DIN Metric Inserts

Wire Braid “compact” up to 1”

C12A52010
C12A Metric Straight Standpipe DIN 2353 RSL/RSS

Hose ID Hose ID Tube OD F Thread C CUT-OFF
Item Code Part Number DASH
in mm mm DASH Factor
1233002 C12A52010-04080 1/4 6,4 04 8 08 30,2
1233003 C12A52010-06100 3/8 9,5 06 10 10 30,3
1233004 C12A52010-08150 1/2 12,7 08 15 15 32,1
1233005 C12A52010-08160 1/2 12,7 08 16 16 37,1

C12A11110

Metric Male 24° Seat - Light DIN 3853 - CEL
C122
Hose ID
F Thread
Item Code
Part Number
in Hose ID DASH dia x pitch Tube OD C CUT-OFF CH1
mm
mm
mm
Factor
1232571 C12A11110-04120 1/4 6,4 04 12x1,5 6 21,3 14,0
1232572 C12A11110-04140 1/4 6,4 04 14x1.5 8 21,3 14,0
1232573 C12A11110-04160 1/4 6,4 04 16x1,5 10 23,3 17,0
1232574 C12A11110-05160 5/16 7,9 05 16x1,5 10 23,3 17,0
1232575 C12A11110-05180 5/16 7,9 05 18x1,5 12 24,3 19,0
1232576 C12A11110-06160 3/8 9,5 06 16x1,5 10 23,3 17,0
1232577 C12A11110-06180 3/8 9,5 06 18x1,5 12 24,3 19,0
1232578 C12A11110-06220 3/8 9,5 06 22x1,5 15 25,3 22,0
1232579 C12A11110-08220 1/2 12,7 08 22x1,5 15 26,1 22,0
1232580 C12A11110-08260 1/2 12,7 08 26x1,5 18 27,1 27,0
1232581 C12A11110-10260 5/8 15,9 10 26x1,5 18 27,1 27,0
1232582 C12A11110-12300 3/4 19 12 30x2,0 22 31,6 32,0
1232583 C12A11110-16360 1 25,4 16 36x2,0 28 34,4 36,0

C124

C12A21513

Metric Female 24° Cone with O-Ring - Light DIN 3865 - DKOL

Hose ID Hose ID F Thread Tube OD C CUT-OFF CH2
Item Code Part Number DASH
in mm dia x pitch mm Factor mm
1232717 C12A21511-04120 1/4 6,4 04 12x1,5 6 24,8 14,0
1232718 C12A21513-04140 1/4 6,4 04 14x1.5 8 24,4 17,0
1232719 C12A21513-04160 1/4 6,4 04 16x1,5 10 25,4 19,0
1232720 C12A21513-05160 5/16 7,9 05 16x1,5 10 25,4 19,0
1232721 C12A21513-06160 3/8 9,5 06 16x1,5 10 25,4 19,0
1232722 C12A21513-06180 3/8 9,5 06 18x1,5 12 25,4 22,0
1232723 C12A21513-06220 3/8 9,5 06 22x1,5 15 27,4 27,0
1232724 C12A21513-08220 1/2 12,7 08 22x1,5 15 28,2 27,0
1232725 C12A21513-08260 1/2 12,7 08 26x1,5 18 29,2 32,0
1232726 C12A21513-10260 5/8 15,9 10 26x1,5 18 29,2 32,0
C126 1232727 C12A21513-12300 3/4 25,4 12 30x2,0 22 31,7 36,0
19
28
33,6
41,0
36x2,0
C12A21513-16360
1232728
1
16
6 www.alfagomma.com
Dimensions shown may be changed without prior notice
